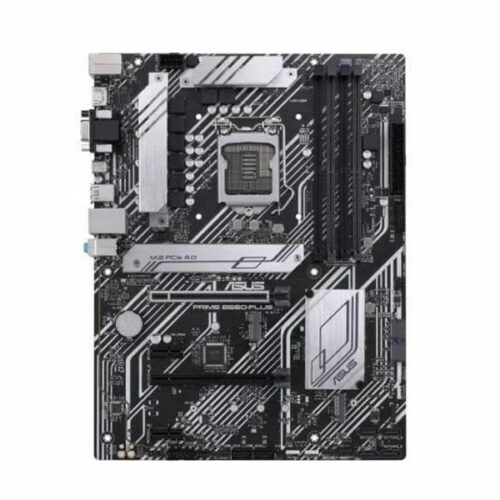

Prosessorikanta:
Intel® Socket LGA1200 for 11th Gen Intel®
Core™ processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron®
Processors
Piirisarja:
Intel® B560 Chipset
Muisti:
4 x DIMM, Max. 128GB, Non-ECC, Un-buffered memory
Dual channel memory architecture
Supports Intel® Extreme Memory Profile (XMP)
Näytönohjain:
1 x DisplayPort**
1 x HDMI® port
1 x D-Sub
Laajennuspaikat:
Intel® 11th &10th Gen Processors
1 x PCIe 4.0/3.0 x16 slot*
– Intel® 11th processors support PCIe 4.0 x16
– Intel®10th processors support PCIe 3.0 x16
Intel® B560 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)*
2 x PCIe 3.0 x1 slots
Lan:
Intel® I219-V
ASUS LANGuard
WLAN:
N/A
Bluetooth:
N/A
Audio:
Realtek ALC887/897 7.1-Channel High Definition Audio CODEC*
– Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192kHz playback
Sisäiset laajennuspaikat:
Fan and cooling-related
1 x 4-pin CPU Fan header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
2 x AURA Addressable Gen 2 headers
2 x AURA RGB headers
1 x Clear CMOS jumper
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF out header
1 x 20-3pin System Panel header with
Chassis intrude function
1 x SPI TPM header (14-1 pin)
1 x M.2 slot (key E)
1 x Thunderbolt 4 header
Takapanelin liitännät:
1 x DP port
1 x HDMI port
1 x D-Sub port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
1 x Intel® I219-V 1Gb Ethernet port
4 x USB 2.0 ports (4 x Type-A)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
1 x USB 3.2 Gen 1 port (1 x USB Type-C®)
Muuta:
ASUS 5X PROTECTION III
– ASUS DIGI+VRM
– ASUS LANGuard
– ASUS Overvoltage Protection
-ASUS SafeSlot Core+
-ASUS Stainless-Steel Back I/O
ASUS Q-Design:
-ASUS Q-DIMM
-ASUS Q-Slot
ASUS Thermal Solution
– Flexible M.2 heatsink
– VRM heatsink design
ASUS EZ DIY
– Box Headers
AURA SYNC
– AURA RGB headers
– Addressable Gen 2 RGB headers
