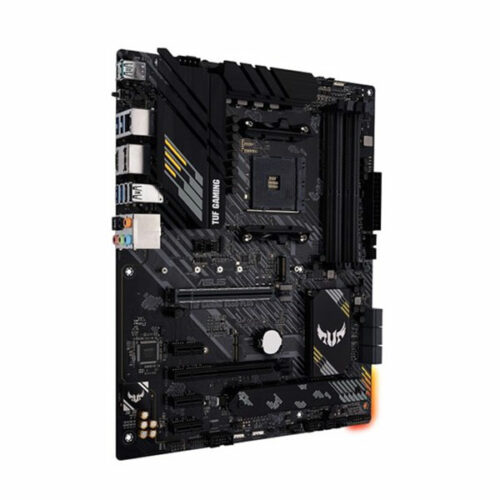

Asus TUF GAMING B550-PLUS AM4 emolevy

Prosessorikanta:

Piirisarja:

AMD B550

Muisti:

AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors
4 x DIMM, Max. 128GB, DDR4
AMD RyzenTM 4000 G-Series Processors
4 x DIMM, Max. 128GB, DDR4
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU

Näytönohjain:

Integrated Graphics Processor:

1 x DisplayPort 1.2
1 x HDMI 2.1(4K@60HZ)

Laajennuspaikat:

AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors
1 x PCIe 4.0 x16 (x16 mode)
AMD RyzenTM 4000 G-Series Processors
1 x PCIe 3.0 x16 (x16 mode)
AMD B550 Chipset
1 x PCIe 3.0 x16 (x4 mode)
3 x PCIe 3.0 x1

Tallennuspaikat:

Total supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
AMD RyzenTM 4000 G-Series Processors :
1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support
AMD B550 Chipset :
1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support*2
6 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10

Lan:

Realtek RTL8125B 2.5Gb Ethernet
TUF LANGuard

WLAN:
–

Bluetooth:
–

Audio:

Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC
– Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Audio Feature :
– Exclusive DTS Custom for GAMING Headsets.
– Optical S/PDIF out port(s) at back panel
– Audio cover
– Audio Shielding
– Dedicated audio PCB layers
– Premium Japanese audio capacitors
– Unique de-pop circuit

USB-portit:

Rear USB Port ( Total 8 )
2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®)
4 x USB 3.2 Gen 1 port(s)( x Type-A)
2 x USB 2.0 port(s)( x Type-A)
Front USB Port ( Total 6 )
2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
4 x USB 2.0 port(s)(4 x Type-A)

Sisäiset laajennuspaikat:

1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
2 x Aura RGB Strip Headers
1 x Addressable Gen 2 header(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 with E key for Wi-Fi module
1 x SPI TPM header
6 x SATA 6Gb/s connector(s)
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x COM port header

Ulkoiset laajennuspaikat:

1 x DisplayPort
1 x HDMI
1 x LAN (2.5G) port(s)
2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C®)
4 x USB 3.2 Gen 1 (blue) Type-A
2 x USB 2.0 (one port can be switched to USB BIOS FlashBack™)
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x BIOS FlashBack™ Button(s)

Muuta:

ASUS TUF PROTECTION
– ASUS DIGI+ VRM (Digital power design with Dr. MOS)
– ASUS Enhanced DRAM Overcurrent Protection
– ASUS ESD Guards
– TUF LANGuard
– ASUS Overvoltage Protection
– ASUS SafeSlot
– ASUS Stainless-Steel Back I/O
ASUS Q-Design
– ASUS Q-DIMM
– ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– ASUS Q-Slot
ASUS Thermal Solution
– Aluminum M.2 heatsink
ASUS EZ DIY
– BIOS FlashBack™ button
– BIOS FlashBack™ LED
– Procool
AURA Sync
– Standard RGB headers
– Addressable Gen 2 RGB header
